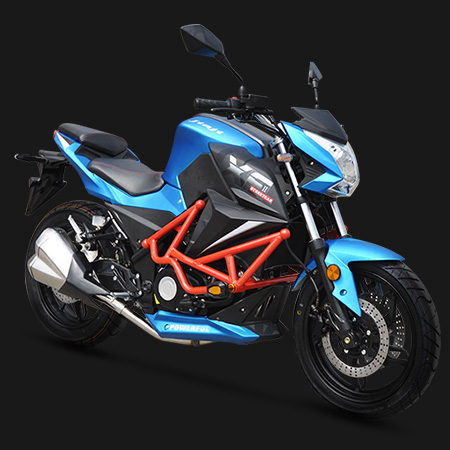

Model:

TB125-5A

Configuration: DOWNLOAD
Parameter:
Engine type:156FMI, Single cylinder, 4-stroke, air-cooling, camshaft downward, balance shaft
Max.Power(kw/r/min):7.3(1±10%)/8500(1±5%)
Max.Torque(N.m/r/min):8.6(1±10%)/7500(1±5%)
Compression Ratio:9.0:1
Bore and Stroke(mm*mm):56.5*49.5
Ignition:CDI
Lubrication:Pressure and Splash
Clutch method:Manual Wet Multi-Plate
Gearshift Method:Constant mesh, two stage transmission, 5-speed Gearshift
Dimensions(mm):2110*760*1100
Wheel Base(mm):1410
Loading Capacity(Kg):230
Net Weight(Kg):140
Tire(F&R):110/70-17&140/70-17
Maximum Speed(km/h):85
